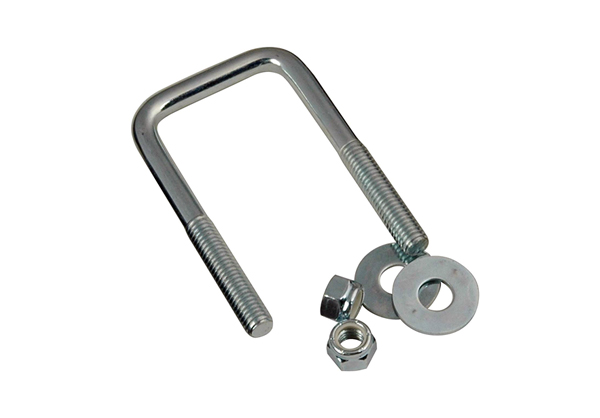

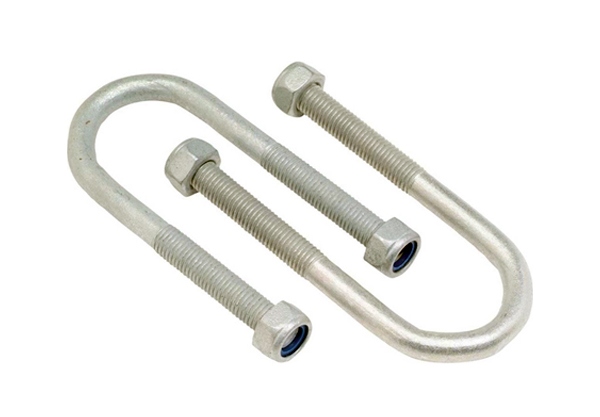

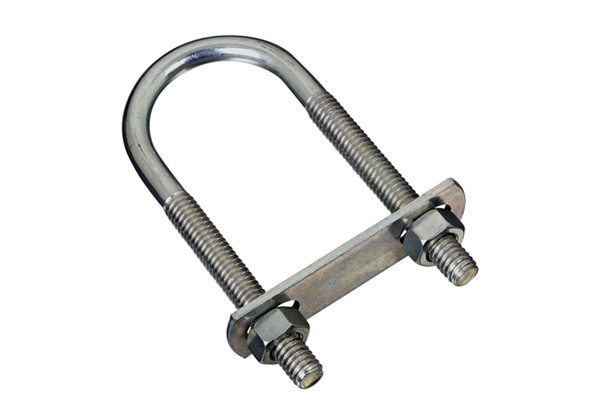

U-bolts are common bolts that are used for building construction and/or vehicle suspension like leaf springs. Considered one of the major parts of your leaf spring installation, u-bolts will provide a permanent tie between the spring leaves. When describing what a u-bolt is, one can just look at the shape. With a letter U shape, the bolt features two threaded arms. The primary use of the U-bolt is to connect the axle to the leaf spring pack within the suspension system.

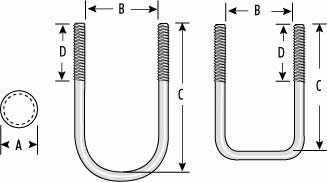

| Diameter (A) | B | C | D |
| 3/8 | 1 9/16 | 2 5/8 | 1 3/4 |
| 3/8 | 2 1/16 | 4 3/8 | 1 3/4 |
| 3/8 | 3 1/16 | 3 7/8 | 1 3/4 |
| 7/16 | 3 1/16 | 2 13/16 | 1 3/4 |
| 1/2 | 2 1/16 | 4 5/16 | 1 3/4 |
| 1/2 | 2 1/16 | 5 5/16 | 1 3/4 |
| 1/2 | 2 1/16 | 6 5/16 | 1 3/4 |
| 1/2 | 3 1/16 | 4 5/16 | 1 3/4 |
| 1/2 | 3 1/16 | 5 5/16 | 1 3/4 |
| 1/2 | 3 1/16 | 6 5/16 | 1 3/4 |

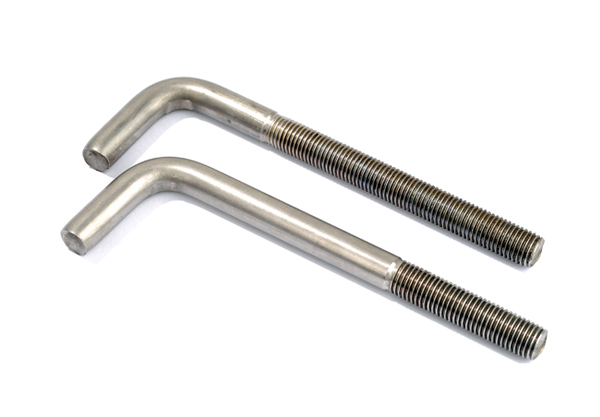

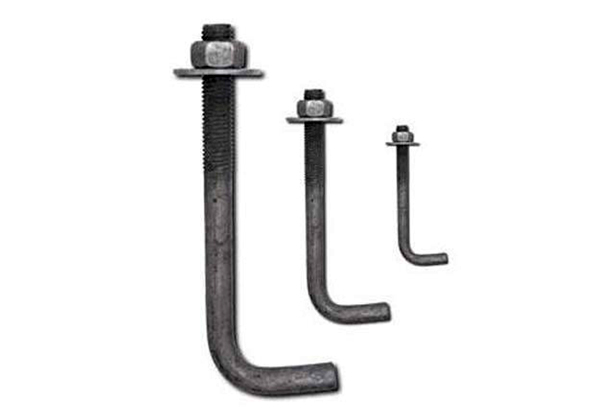

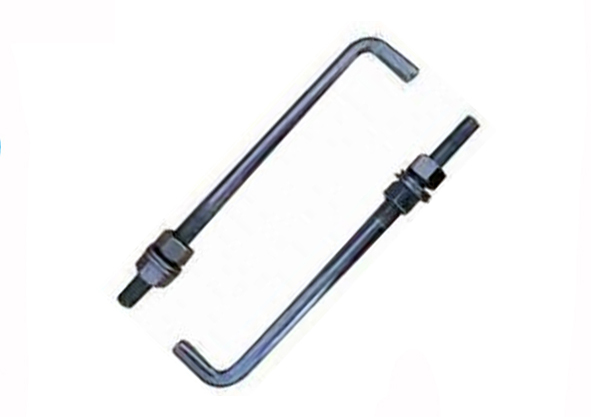

L-Bolts are used to attach a plate member to a concrete or masonry foundation, provide anchorage for lightweight post bases, and for general anchorage to concrete. They are packaged with nuts and cut washers. Many building codes require that additional bearing plates be used with the bolt in high wind and high seismic areas; consult local codes.

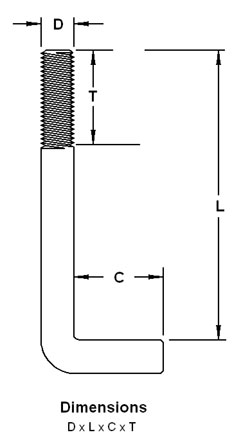

| (D x L x C x T) |
| 1/2 x 8 x 2 x 4 |
| 1/2 x 10 x 2 x 4 |
| 1/2 x 12 x 2 x 4 |
| 1/2 x 18 x 4 x 4 |
| 5/8 x 8 x 2 x 4 |
| 5/8 x 10 x 2 x 4 |
| 5/8 x 12 x 3 x 4 |
| 5/8 x 18 x 4 x 6 |
| 3/4 x 6 x 3 x 4 |
| 3/4 x 8 x 3 x 4 |
| 3/4 x 10 x 3 x 4 |
| 3/4 x 12 x 4 x 4 |
| 3/4 x 14 x 4 x 6 |
| 3/4 x 15 x 4 x 6 |
| 3/4 x 16 x 4 x 6 |
| 3/4 x 18 x 4 x 6 |
| 3/4 x 18 x 4 x 7 |
| 3/4 x 24 x 4 x 6 |
| 3/4 x 30 x 4 x 6 |
| 3/4 x 30 x 4 x 7 |
| 3/4 x 36 x 4 x 6 |
| 7/8 x 18 x 4 x 6 |
| 1 x 12 x 4 x 4 |
| 1 x 16 x 4 x 6 |
| 1 x 18 x 4 x 6 |
| 1 x 24 x 4 x 6 |
| 1 x 36 x 4 x 6 |
| 1 x 36 x 4 x 7 |
| 1 x 36 x 4 x 12 |
| 1-1/4 x 32 x 6 x 7 |
| 1-1/4 x 36 x 5 x 12 |
| 1-1/4 x 42 x 6 x 7 |

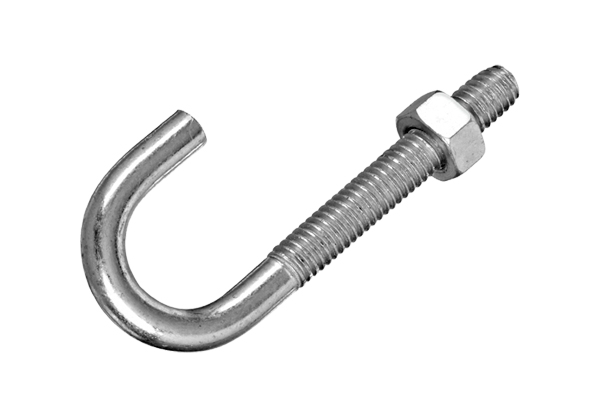

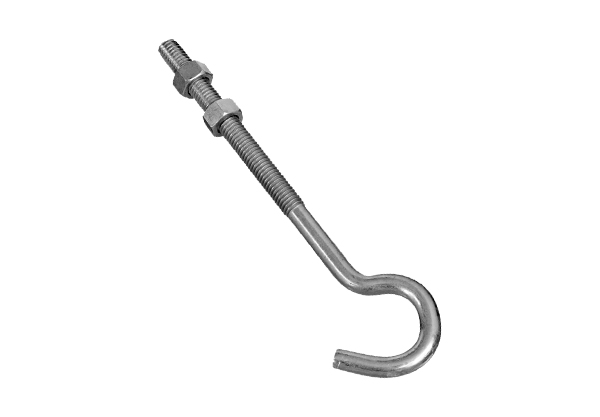

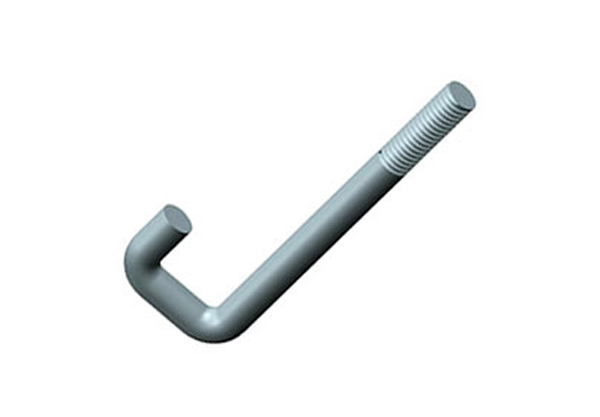

J-shaped bolt that can be used in a variety of applications and are made from several different materials. They are most commonly used to suspend electrical wiring and sheet metal from wooden structures as well as in the furniture industry to hold springs.
| J-BOLTS SPECIFICATIONS | |||
| Size (A x B) |
Inside Hook Diameter (C) |
Thread Length (D) |
|
| 8-32 x 1-7/8 | 5/16 | 1-1/4 | |
| 10-24 x 2-1/8 | 3/8 | 1-1/4 | |
| 1/4-20 x 2-5/16 | 7/16 | 1-1/2 | |
| 1/4-20 x 4 | 1/2 | 2 | |
| 1/4-20 x 6 | 5/8 | 2-1/2 | |
| 5/16-18 x 3 | 1/2 | 2 | |
| 5/16-18 x 5 | 5/8 | 2-1/2 | |
| 5/16-18 x 7 | 5/8 | 3-7/8 | |
| 3/8-16 x 3-3/4 | 5/8 | 2-1/4 | |
| 3/8-16 x 5 | 5/8 | 2-1/4 | |
| 3/8-16 x 7 | 5/8 | 2-1/4 | |
| 1/2-13 x 6 | 1 | 3 | |
