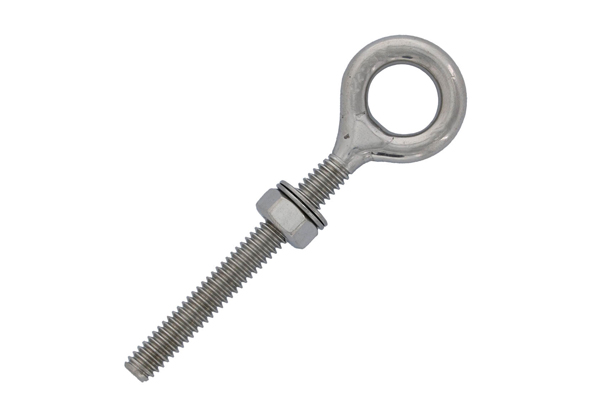

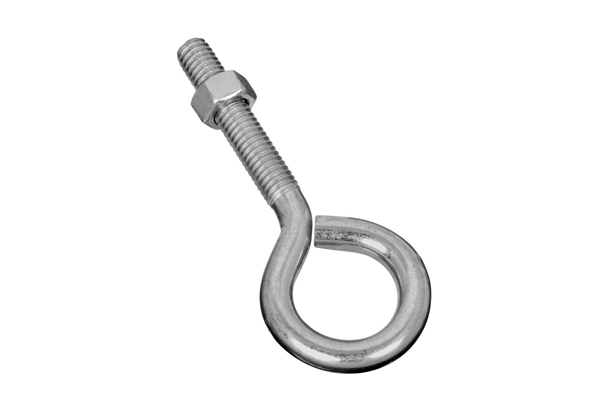

E-mail : info@atharvinds.com E-mail : info@atharvinds.comEye bolts have a variety of uses, one of the most common being in the rigging industry, where a steel eye bolt is ideal as an anchor point for many rigging applications. There are several guidelines to remember when using an eye bolt for rigging, anchoring, pulling, pushing or hoisting.

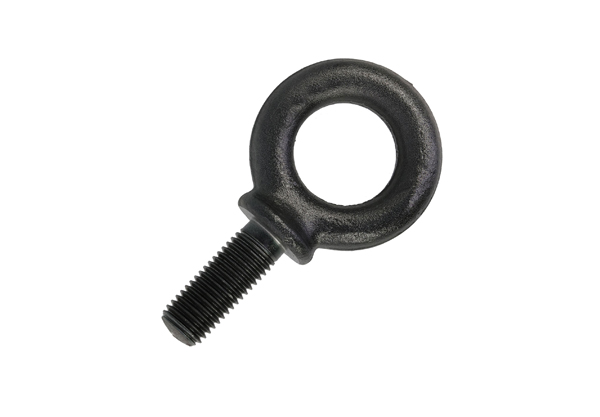

Regular rigging eyebolts should be used for straight line pulls only. For angular lifts, shoulder eye bolts are the better choice. Always inspect a threaded eye bolt prior to use and make sure the threads and receiving holes are clean. Never use an anchor eyebolt if the shank or eye has been bent, elongated, or deformed. The threaded part of eye bolts must protrude through the load so the nut is allowed full engagement of threading. If an eye bolt protrudes too far through the load, you may need to shim the bolt with washers between the nut and the load prior to putting the nut on.
| A (Size) |
B | C | D | Thread | Wire Dia. | WLL (lb) |
WT (lb) |
| 3/16" | 0.85" | 1" | 0.37" | 10-24 | 0.16" | 250 | 0.02" |
| 3/16" | 1.50" | 2" | 0.37" | 10-24 | 0.16" | 250 | 0.03" |
| 3/16" | 1.75" | 1" | 0.37" | 10-24 | 0.16" | 250 | 0.03" |
| 1/4" | 1.50" | 2" | 0.50" | 1/4"-20 | 0.21" | 400 | 0.06" |
| 1/4" | 2.00" | 3" | 0.50" | 1/4"-20 | 0.21" | 400 | 0.07" |
| 1/4" | 2.00" | 4" | 0.50" | 1/4"-20 | 0.21" | 400 | 0.08" |
| 1/4" | 2.00" | 5" | 0.50" | 1/4"-20 | 0.21" | 400 | 0.08" |
| 1/4" | 2.00" | 6" | 0.50" | 1/4"-20 | 0.21" | 400 | 0.09" |
| 5/16" | 1.25" | 2" | 0.63" | 5/16"-18 | 0.16" | 250 | 0.07" |
| 5/16" | 2.00" | 3" | 0.63" | 5/16"-18 | 0.16" | 250 | 0.08" |
| 5/16" | 4.00" | 1" | 0.63" | 5/16"-18 | 0.16" | 250 | 0.02" |
| 5/16" | 5.00" | 1" | 0.63" | 5/16"-18 | 0.16" | 250 | 0.02" |
| 5/16" | 2.00" | 6" | 0.63" | 5/16"-18 | 0.16" | 250 | 0.02" |
| 3/8" | 2.00" | 3" | 0.75" | 3/8"-16 | 0.33" | 1,000 | 0.19" |
| 3/8" | 2.00" | 4" | 0.75" | 3/8"-16 | 0.33" | 1,000 | 0.21" |
| 3/8" | 2.00" | 5" | 0.75" | 3/8"-16 | 0.33" | 1,000 | 0.24" |
| 3/8" | 2.00" | 6" | 0.75" | 3/8"-16 | 0.33" | 1,000 | 0.26" |
| 1/2" | 2.00" | 3" | 1.00" | 1/2"-13 | 0.43" | 1,800 | 0.40" |
| 1/2" | 2.00" | 4" | 1.00" | 1/2"-13 | 0.43" | 1,800 | 0.44" |
| 1/2" | 2.00" | 5" | 1.00" | 1/2"-13 | 0.43" | 1,800 | 0.49" |
| 1/2" | 2.00" | 6" | 1.00" | 1/2"-13 | 0.43" | 1,800 | 0.53" |
