We hold in-depth expertise in providing High Tensile Precision Fastener Nuts that are manufactured using quality material to ensure their durability. These are available in different finishes & sizes and known for their dimensional accuracy, resistance to rust & corrosion. Our range of Hex Nuts Fasteners finds application in automobile, paper, cement and engineering industries.

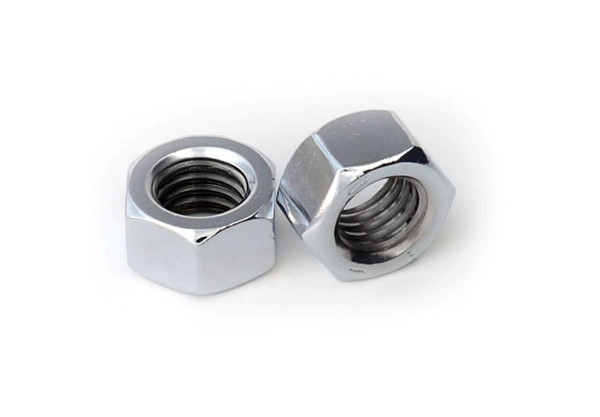

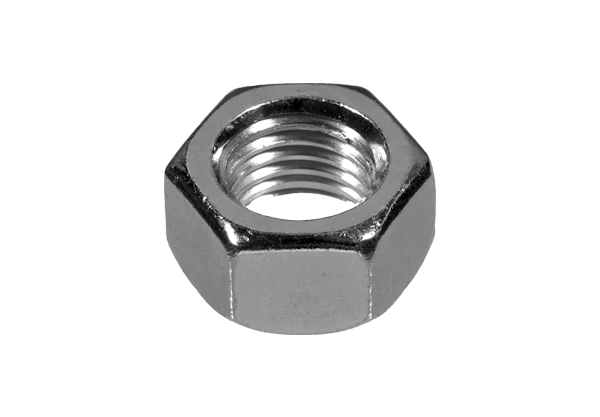

Avail from us a wide range of hex nuts, manufactured using superior quality material. We manufacture our product range as per the international standards. Owing to features like dimensionally accurate, high tensile strength, rust resistant and last for along period, our range is widely appreciated by our clients. Besides, our product range is available in various diameter ranging from M2 to M36 and 3/16 to 1". Moreover, we have the ability of customizing our products.

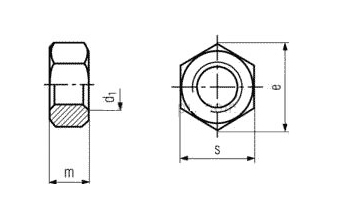

d1 | s | e | m |
M1 | 2.5 | 2.72 | 0.8 |
M1.2 | 3 | 3.29 | 1 |
M1.4 | 3 | 3.29 | 1.2 |
M1.6 | 3.2 | 3.48 | 1.3 |
M1.7 | 3.5 | 3.82 | 1.4 |
M2 | 4 | 4.32 | 1.6 |
M2.3 | 4.5 | 4.95 | 1.8 |
M2.5 | 5 | 5.45 | 2 |
M2.6 | 5 | 5.51 | 2 |
M3 | 5.5 | 6.01 | 2.4 |
M3.5 | 6 | 6.01 | 2.8 |
M4 | 7 | 7.66 | 3.2 |
M5 | 8 | 8.76 | 4 |
M6 | 10 | 11.05 | 5 |
M7 | 11 | 12.12 | 5.5 |
M8 | 13 | 14.38 | 6.5 |
M10 | 17 | 18.9 | 8 |
M12 | 19 | 21.1 | 10 |
M14 | 22 | 24.49 | 11 |
M16 | 24 | 26.75 | 13 |
M18 | 27 | 29.56 | 15 |
M20 | 30 | 32.95 | 16 |
M22 | 32 | 35.03 | 18 |
M24 | 36 | 39.55 | 19 |
M27 | 41 | 45.2 | 22 |
M30 | 46 | 50.85 | 24 |
M33 | 50 | 55.37 | 26 |
M36 | 55 | 60.79 | 29 |
M39 | 60 | 66.44 | 31 |
M42 | 65 | 71.3 | 34 |
M45 | 70 | 76.95 | 36 |
M48 | 75 | 82.6 | 38 |
M52 | 80 | 88.25 | 42 |
M56 | 85 | 95.07 | 45 |
M60 | 90 | 100.72 | 48 |
M64 | 95 | 106.37 | 51 |
M68 | 100 | 112.02 | 54 |
M72 | 105 | 117.67 | 58 |
M76 | 110 | 123.32 | 61 |
M80 | 115 | 128.97 | 64 |
M85 | 120 | 133.11 | 68 |
M90 | 130 | 145.77 | 72 |
M95 | 135 | 151.42 | 76 |
M100 | 145 | 162.72 | 80 |
M105 | 150 | 16837 | 84 |
M110 | 155 | 174.02 | 88 |
M115 | 165 | 185.32 | 92 |
M120 | 170 | 190.97 | 96 |
M125 | 180 | 202.27 | 100 |
M130 | 185 | 207.75 | 104 |
M135 | 190 | 213.40 | 108 |
M140 | 200 | 224.70 | 112 |
M145 | 210 | 236 | 116 |
M150 | 210 | 236 | 120 |
