Construction Coil Rods, Threaded Rods/Threaded Bars, Thread Studs

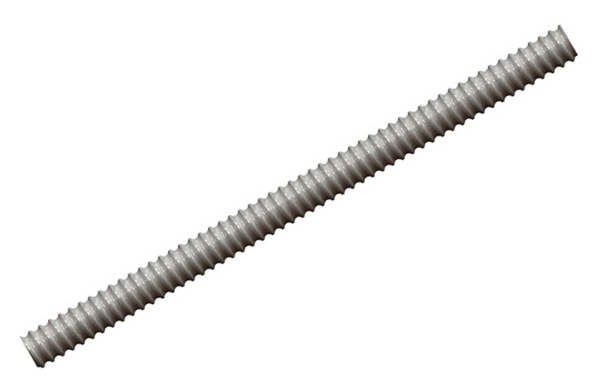

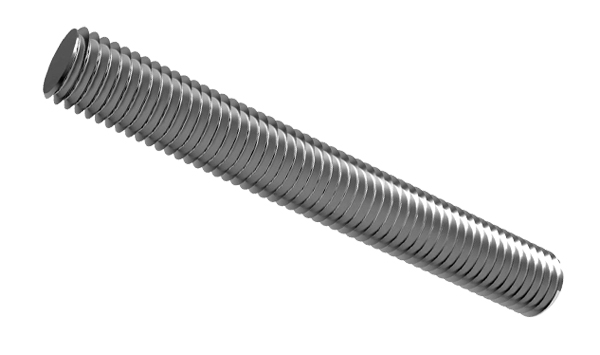

Coil Threaded Bars come in customised lengths up to 20' . They can be used in any fastener situation and excel in use as concrete forming systems. Coil Rod is manufactured in mild steel. We are also manufacturing Threaded Rods and Thread Bars on large scale with international quality standards.

Materials	Finishes	Threads	Size Range
Low Carbon Steel	Plain/Oil	Coarse (right & left hand)	Diameters: 2-56 to 2"
T304/T316 Stainless	Clear Zinc Plated	Fine (right & left hand)	Lengths: 1' to 12'
ASTM A 193 B7	Yellow Zinc Plated	Metric	Tube Quantities: 1 to 50 depending on diameter
	Hot Dip Galvanized	Acme
	Black Oxide
	Nickel Plated

Size	Description	Length	Finish	Min. Tensile Strength	Min. Yield Strength
1/2" Coil Rod	1/2" - 6	12'	Plain	130,000 psi [896 MPA]	110,000 psi [757 MPA]
5/8" Coil Rod	5/8" - 5	12'	Plain	113,000 psi [779 MPA]	96,000 psi [662 MPA]
3/4" Coil Rod	3/4" - 4.5	12'	Plain	113,000 psi [814MPA]	100,000 psi [689 MPA]
1" Coil Rod	1" - 3.5	12'	Plain	140,000 psi [965 MPA]	120,000 psi [827 MPA]
1-1/4" Coil Rod	1-1/4" - 3.5	12'	Plain	113,000 psi [848 MPA]	105,000 psi [724 MPA]
1-1/2" Coil Rod	1-1/2" - 3.5	12'	Plain	100,000 psi [689 MPA]	85,000 psi [586 MPA]

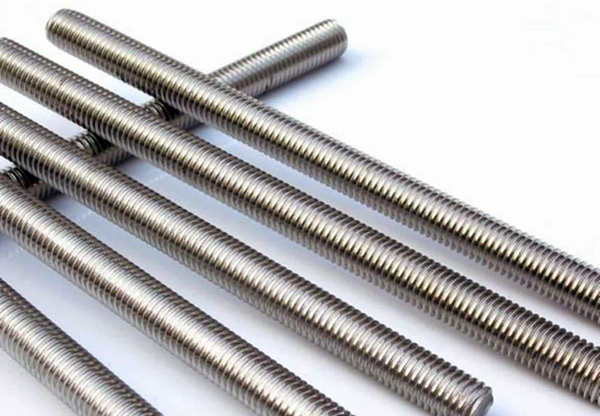

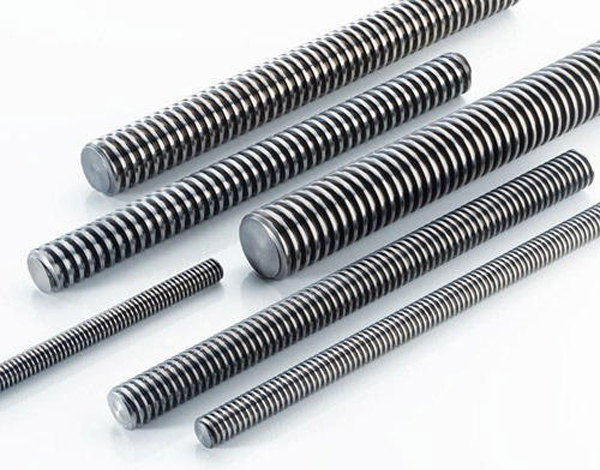

Threaded rods refers to a straight, relatively long metal rod used in a variety of applications and industries ranging from plumbing, electrical, automotive, heavy construction, HVAC, fire sprinklers, telecom and food service.

Single end and double end threaded rod are often bent to make specialized fasteners such as anchor bolts and u-bolts. A common type of threaded rod is all thread or fully threaded rod, where the thread extends the complete length of the rod. They are available in a variety of diameters, lengths and finishes. Also sometimes called studs or threaded studs, threaded rod can be cut to desired length using any metal saw. We also deals in construction coil rods etc.

Materials	Finishes	Threads	Size Range
Low Carbon Steel	Plain/Oil	Coarse (right & left hand)	Diameters: 2-56 to 2"
T304/T316 Stainless	Clear Zinc Plated	Fine (right & left hand)	Lengths: 1' to 12'
ASTM A 193 B7	Yellow Zinc Plated	Metric	Tube Quantities: 1 to 50 depending on diameter
Brass	Hot Dip Galvanized	Acme
Aluminum	Black Oxide
Silicon Bronze	Nickel Plated

Size	Wt Per 100 Feets in KGS	Pieces Per Tube
1/4-20	5.50	50
5/16-18	9.00	35
3/8-16	13.25	25
7/16-14	17.60	17
1/2-13	23.00	12
9/16-12	29.85	10
5/8-11	38.00	2
3/4-10	55.25	5
7/8-9	74.75	4
1-8	100.00	3
1 1/-2-6	232.50	1
2"-4 ½	400.55	1

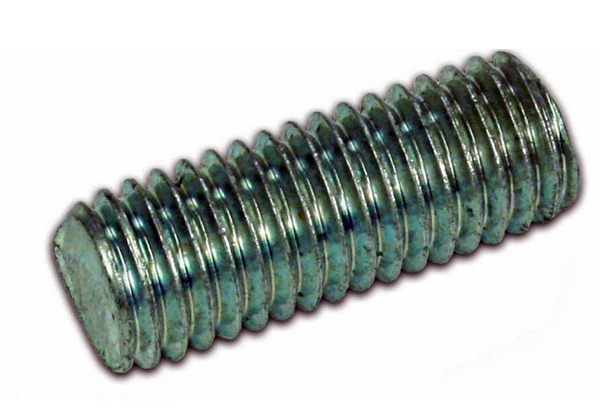

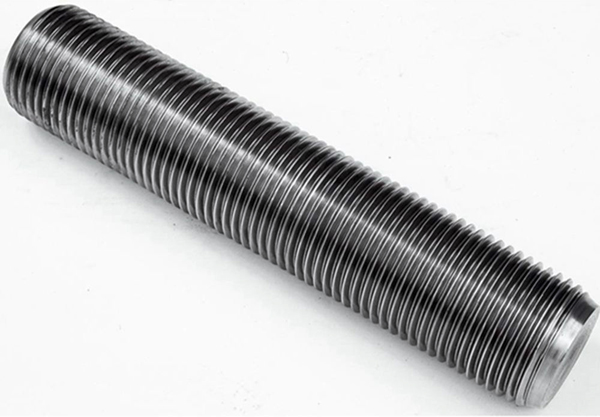

Studs are structural are used in building walls and wall frames. These studs are fully-threaded, and they are made with ASTM A193 Grade B7 Galvanized Steel. Galvanized steel, which undergoes a rigorous chemical process to prevent corrosion, is typically used in the construction of homes. Fully-threaded studs make it possible to build a steel wall frame. Steel fully-threaded studs are straight and resistant to splitting and shrinkage. They are also unaffected by fire, rot, and pests, so they store easily for long periods of time. It's easier to move steel studs when building a wall frame etc. We are also manufacturing Threaded Bars and Thread Rods and coil rods or tie rods for export.

Threaded Studs availabel in Style: Fully Threaded; System of Measurement: Inch; Thread Size: 1/2-13; Overall Length (Inch): 2; Material: Low Carbon Steel; Finish/Coating: Zinc-Plated

Materials	Finishes	Threads	Size Range
Low Carbon Steel	Plain/Oil	Coarse (right & left hand)	Diameters: 2-56 to 2"
T304/T316 Stainless	Clear Zinc Plated	Fine (right & left hand)	Lengths: 1' to 12'
ASTM A 193 B7	Yellow Zinc Plated	Metric
	Hot Dip Galvanized	Acme
	Black Oxide
	Nickel Plated
